LIFTING POINTS
EXTENDED BOLT
SUPER POINT
KEY EYE POINT
LIFTING POINT
LIFTING POINT SPECIFICATIONS

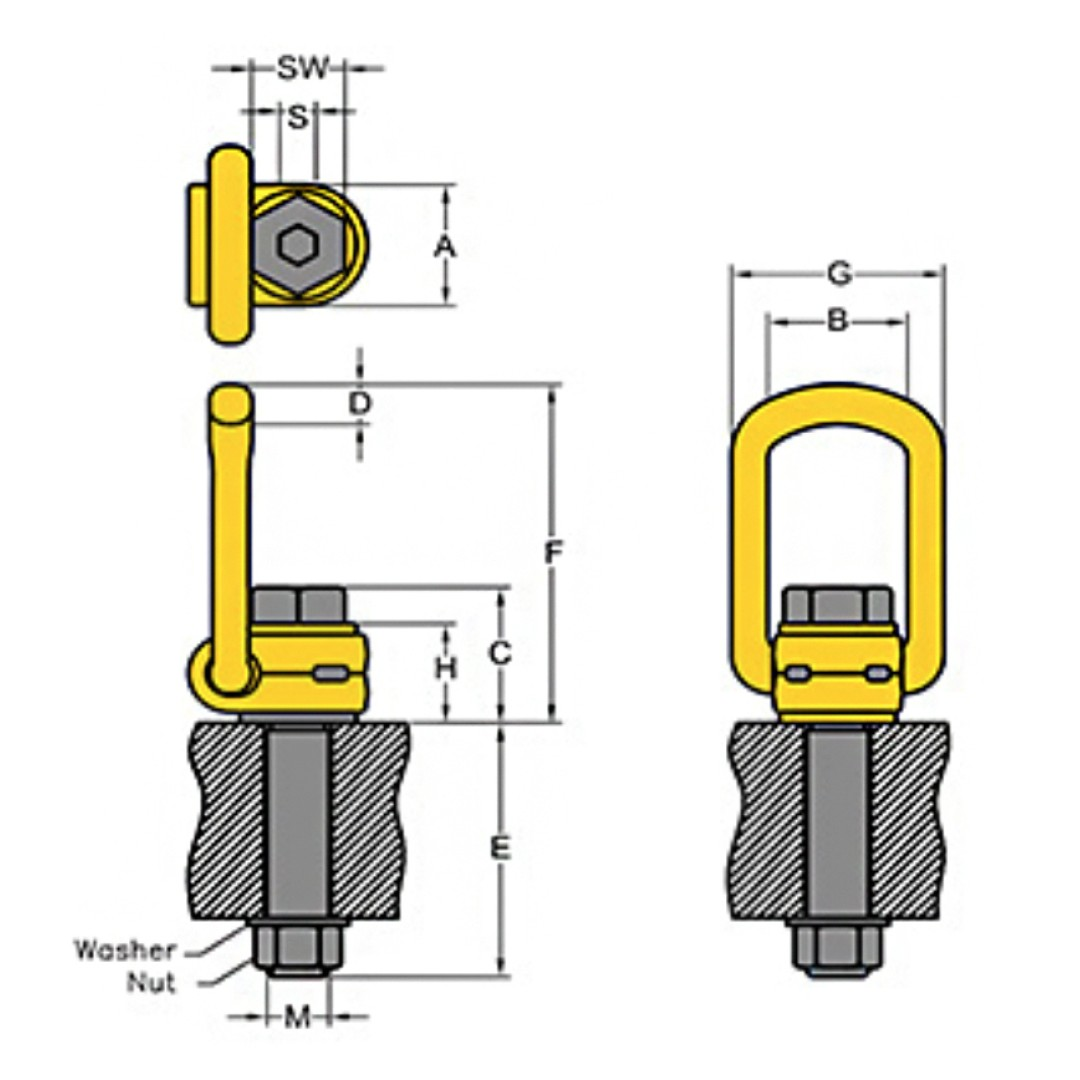

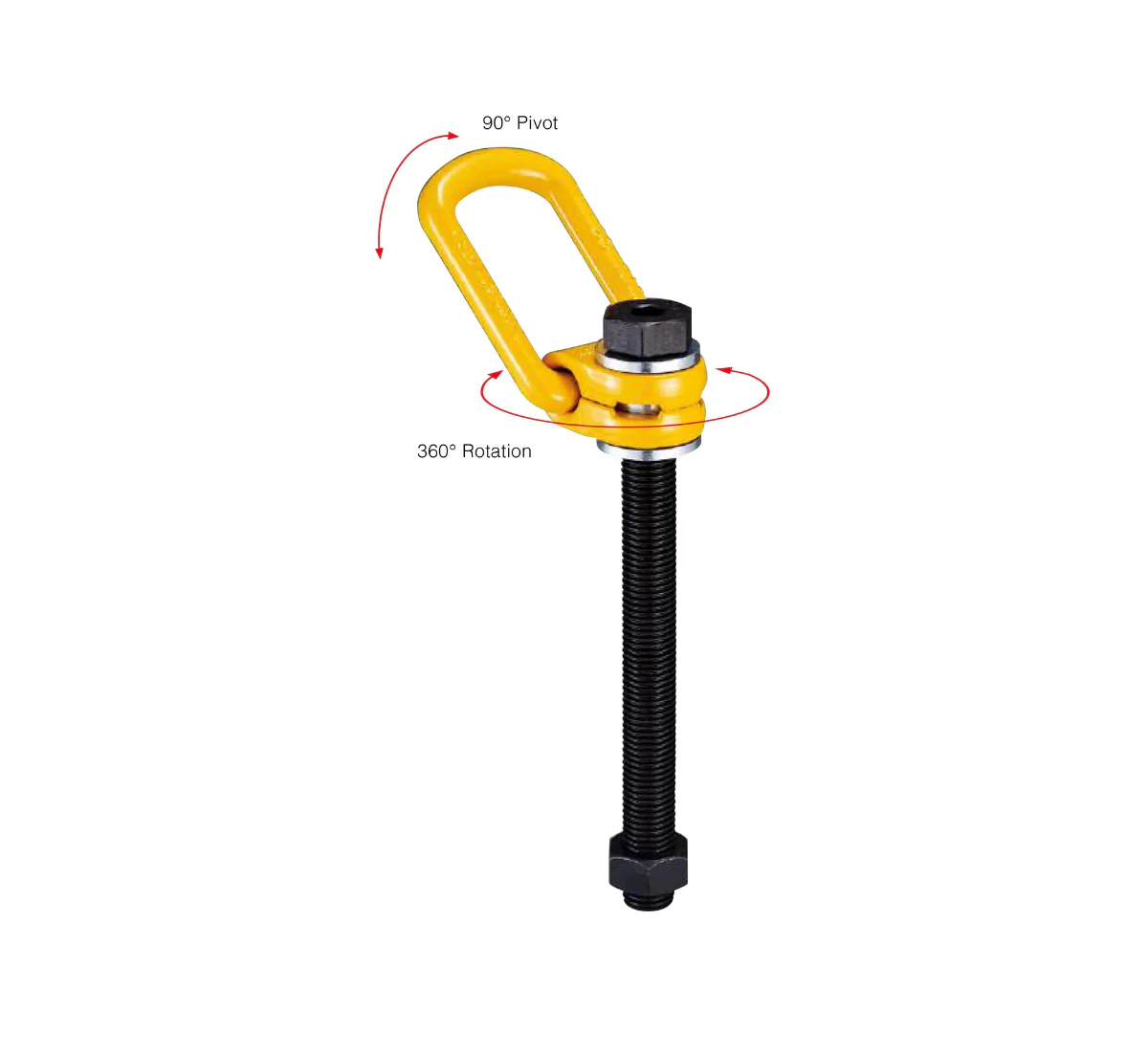

EXTENDED BOLT LIFTING POINTS
360° rotation
90° pivot
Manufactured from alloy steel
Tested in accordance with EN1677-1
100% magnaflux crack detectable on load rated parts
Test certified traceable individual forged parts and cap srew
Metric threaded bolts
Proof tested to 2.5 times WLL
20 000 cycle fatigue rating at 1.5 times WLL
Meets / exceeds all ASME B30.26 requirements
Easy and quick assembly
AVAILABLE IN M16, M20 & M24

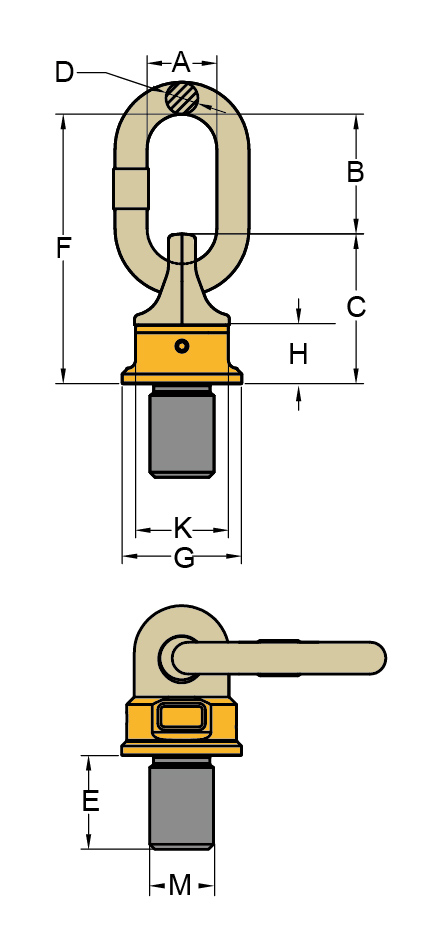

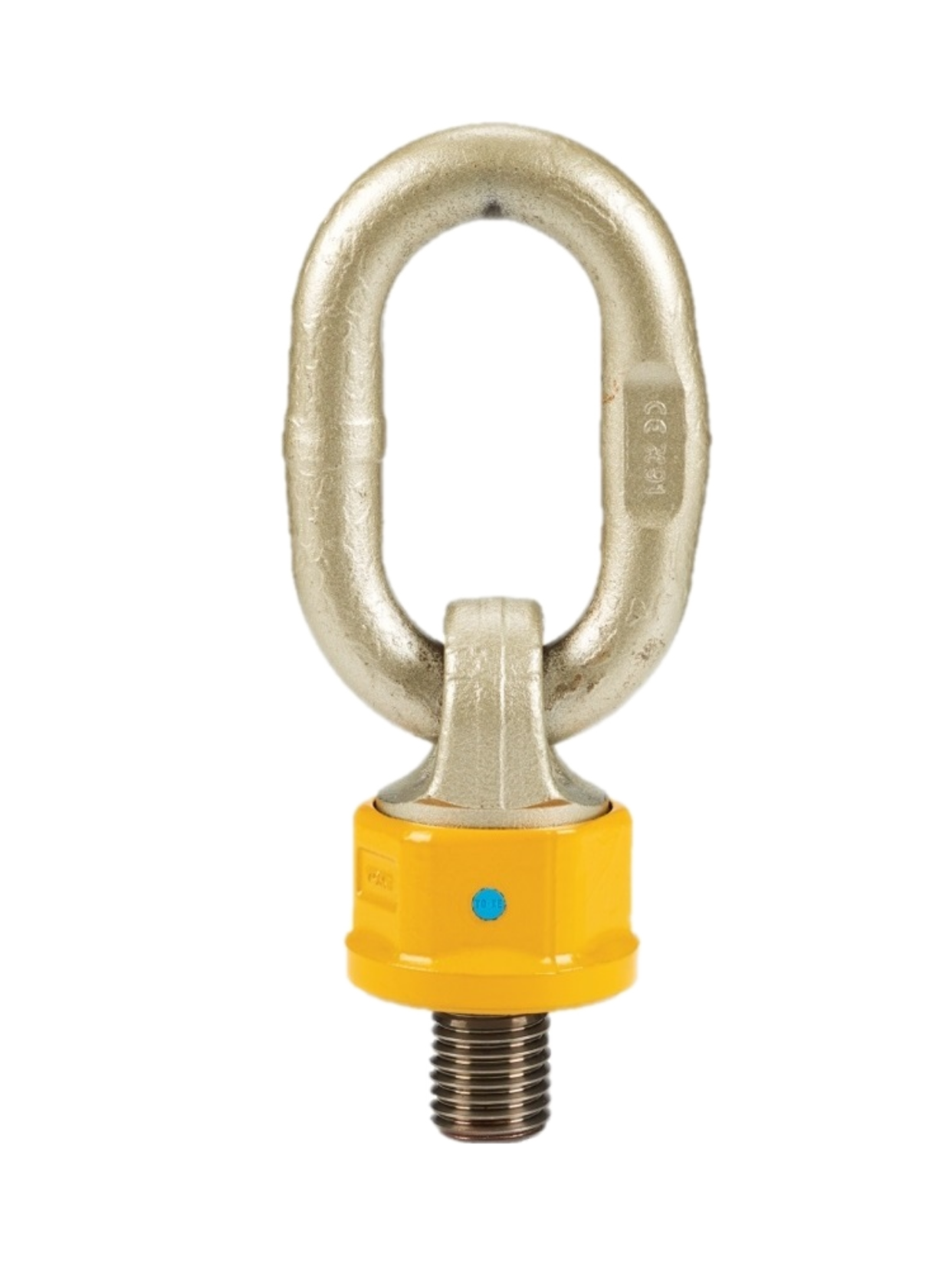

SUPER POINT LIFTING POINTS
360° rotation
230° pivot (ball bearing design)
Manufactured with alloy steel
Can rotate under load
Tested in accordance with EN1677-4
Certified by DGUV GS-OA 15-04
100% magnaflux crack detectable
Test certificate for individual forged parts and batch code
Metric threaded bolts
Proof tested to 2.5 times WLL
20 000 cycle fatigue rate at 1.5 times WLL
Meet / exceed all requirements of ASME B30.26
Easy to attach and detach due to hexagonal shaped body
DO NOT turn continuously at 90° direction with full load applied
AVAILABLE IN M10, M12, M16, M20, M24, M30, M36, M42, M48 & M56

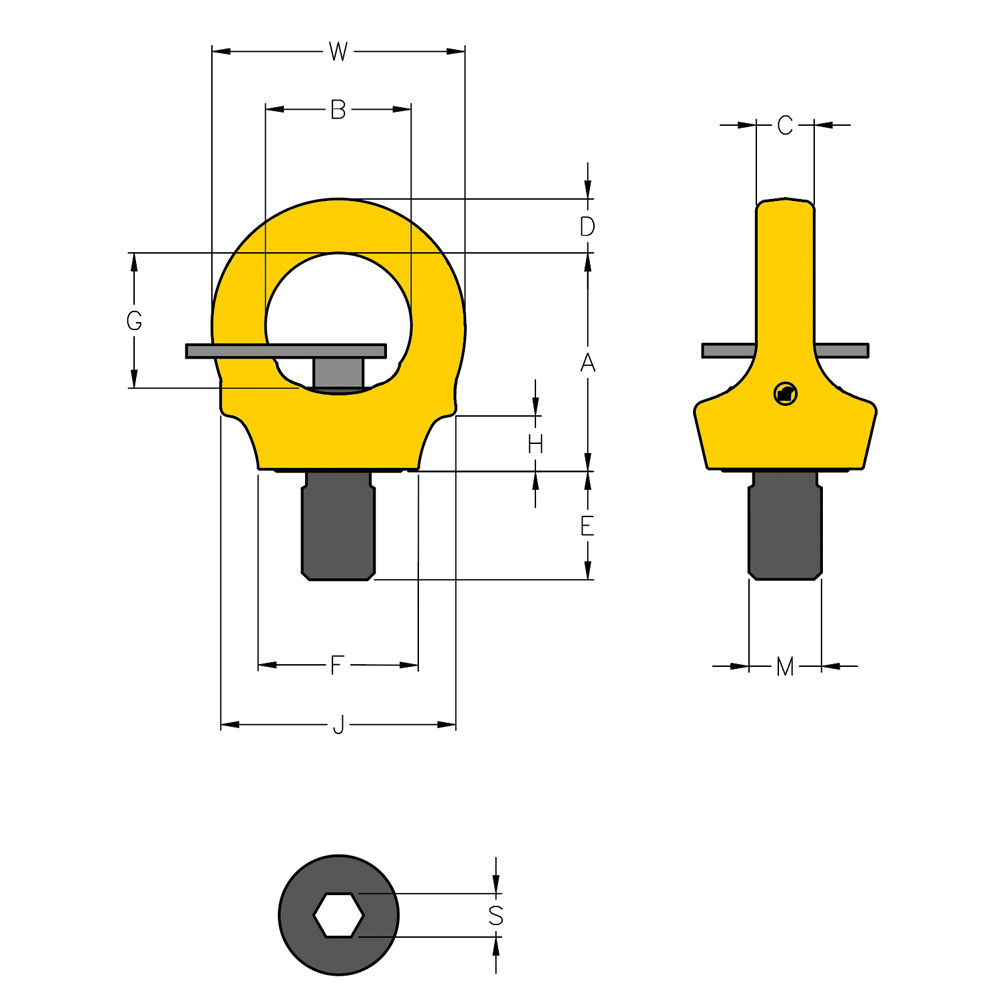

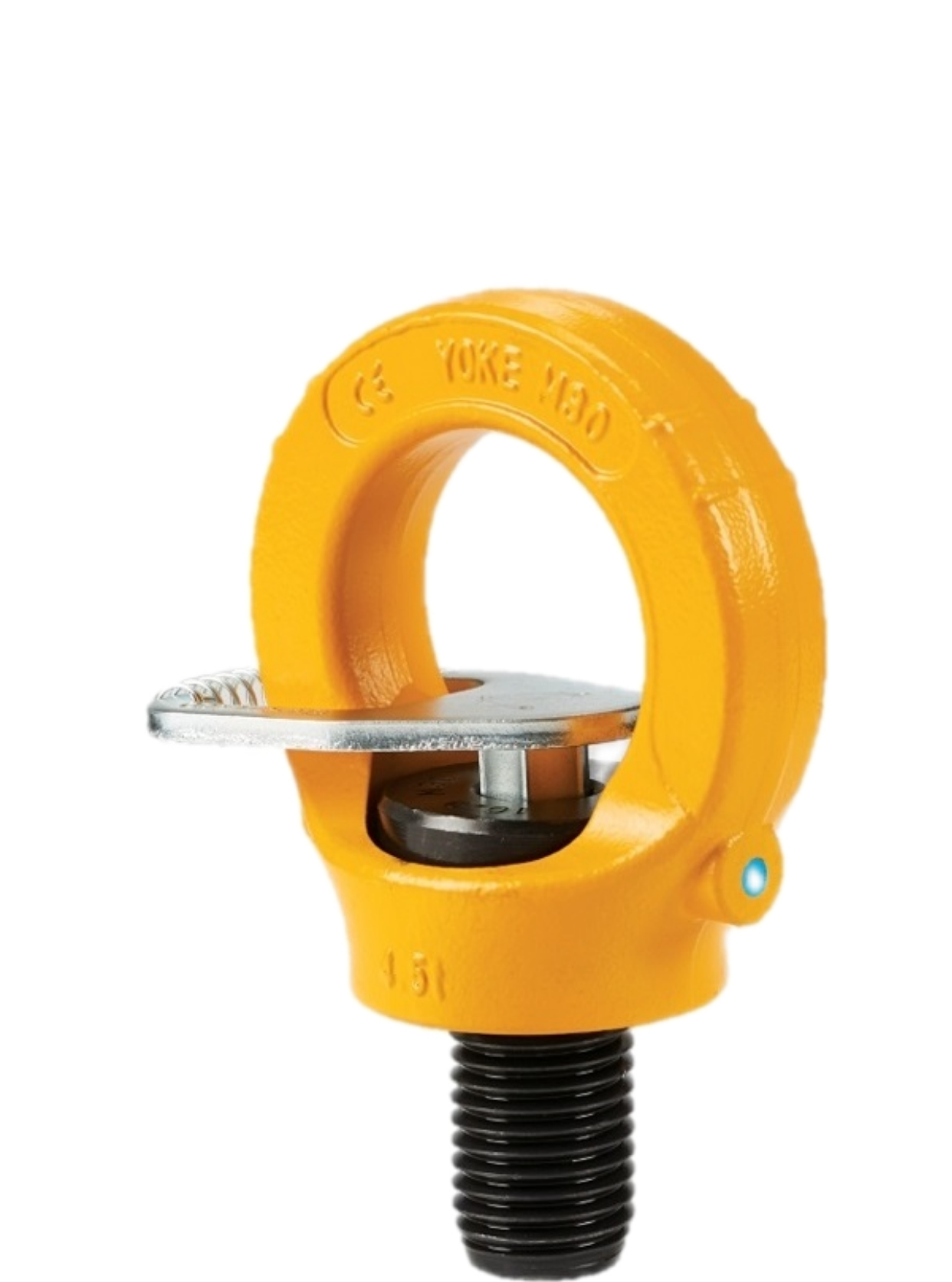

KEY EYE LIFTING POINTS
360° rotation which is adjustable in the direction of the load
Manufactured with alloy steel
Tested in accordance with EN1677-1
100% magnaflux crack detectable
Test certified individual forged parts and cap screws
Metric threaded bolts
Proof tested to 2.5 times WLL
20 000 cycle fatigue rate at 1.5 times WLL
Meet / exceed all requirements of ASME B30.26
Simple and quick assembly
AVAILABLE IN M8, M10, M12, M16, M20, M24 & M30

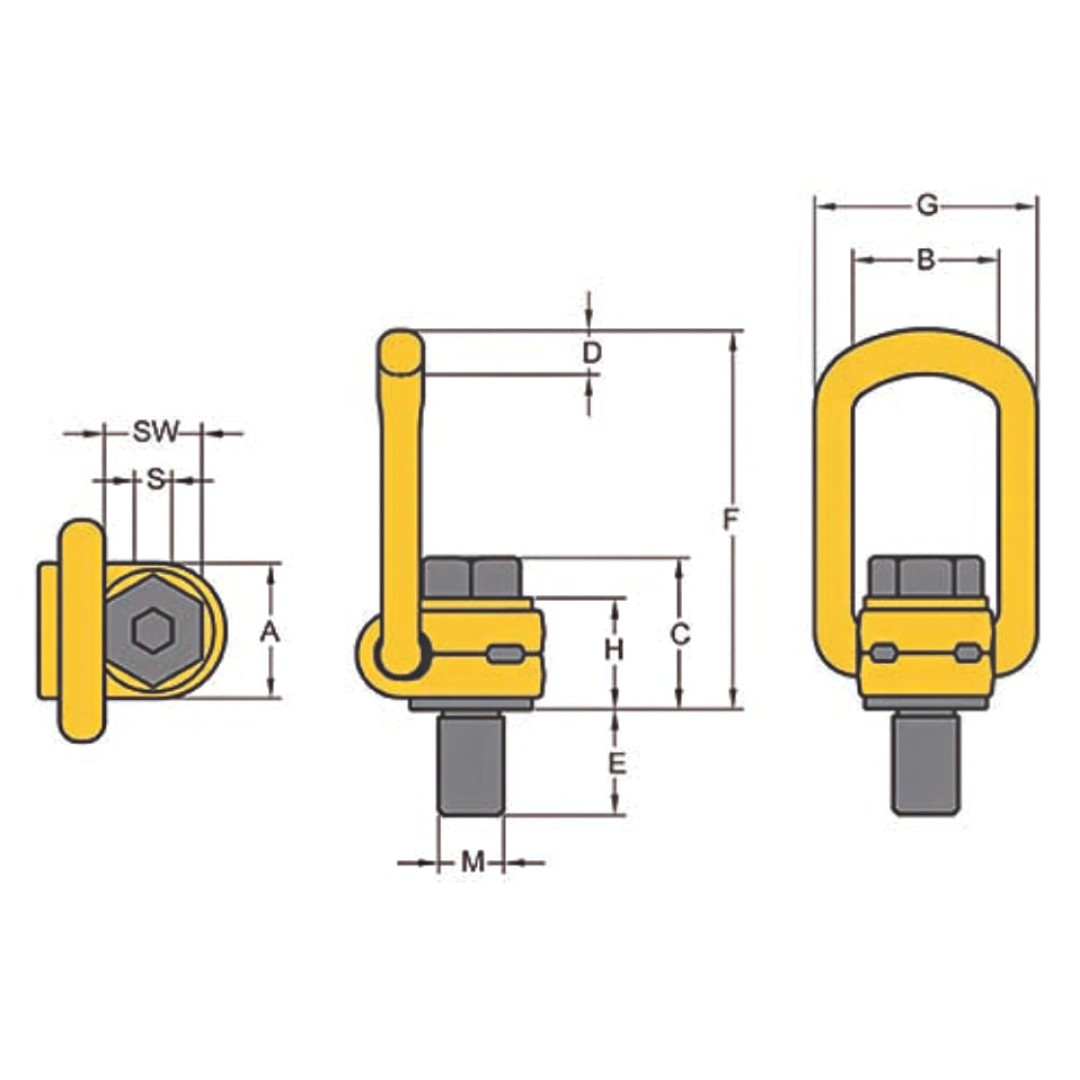

LIFTING POINTS
360° rotation
90° pivot
Manufactured using alloy steel
Tested in accordance with EN1677-1
Certified by DGUV GS-OA 15-04
Load rated parts are 100% magnaflux crack detectable
Test certification provided for individual forged parts and cap screw
Metric threaded bolts
Proof tested to 2.5 times WLL
20 000 cycle fatigue rating at 1.5 times WLL
Meets / exceeds all ASME B30.26 requirements
Easy to assemble
